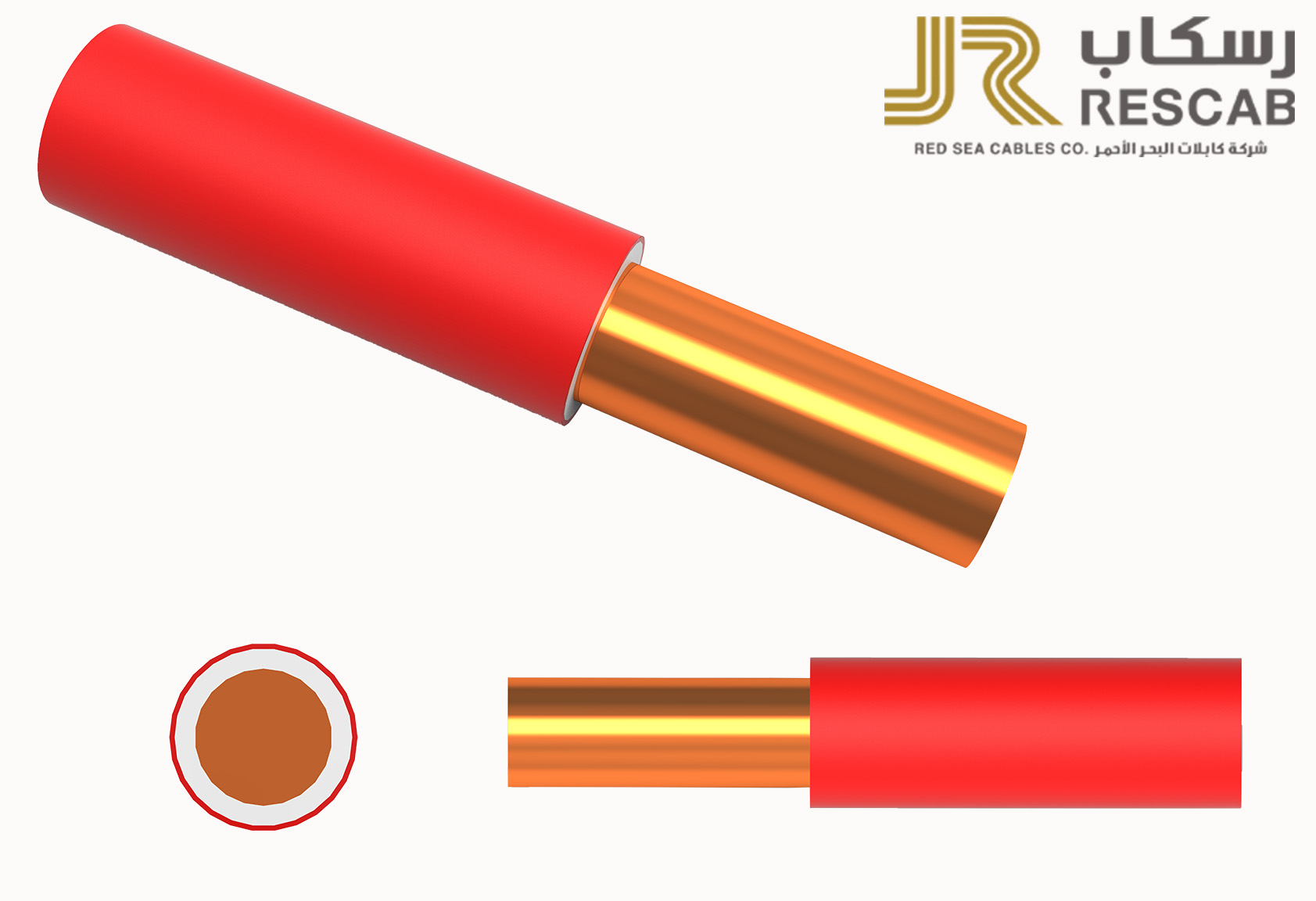

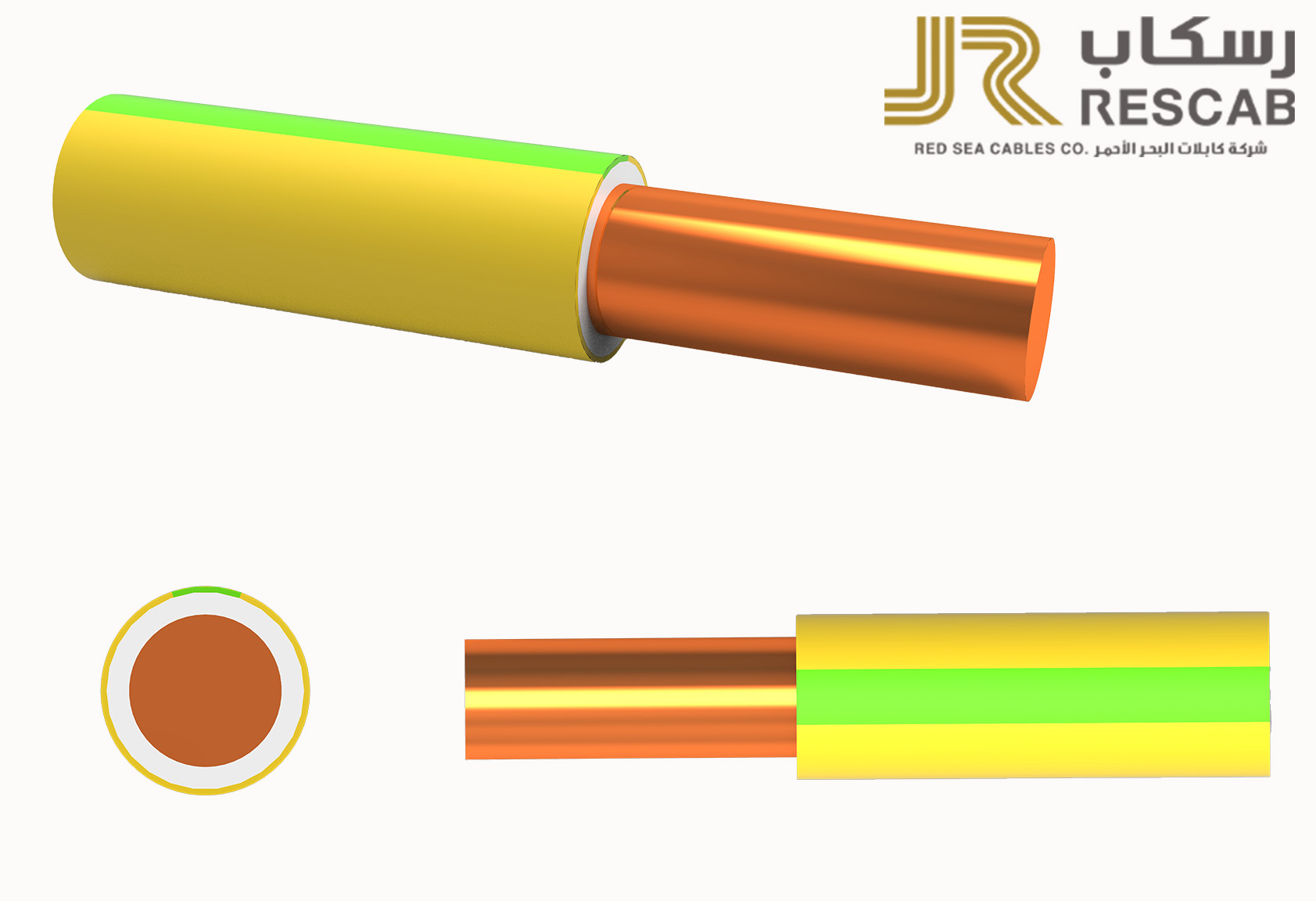

NYA-SOLID WIRES

Download Catalogue

Product Code : SW-01

Send Enquiry

Description

Red Sea Cables Company enjoys a track record in wires with thermoplastic PVC insulation for general purpose applications such as for supplying power and lighting in residential and commercial buildings.
They are intended for use in the indoor fixed installation, distribution in conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus.

Technical Specifications:
  •   CU/PVC Single Core - 450/750 Volts - Suitable for Voltages up to 1000 Volts a.c or up to 750 Volts to Earth, d.c. According to IEC 60227, SASO 1320, BS 50525-2-31.
Conductor:
  •   Soft Annealed copper according to BS EN 60228, Class 1 Solid conductor with Conductivity 100 % IACS.
Insulation:
  •   Thermoplastic Polyvinyl chloride (PVC-TI 3) Insulation rated temperature up to 90oC with State of the Art Extrusion technology for color code by SKIN Coating. The Special HEAT RESISTANT PVC is in accordance with SASO 1320, IEC 60227 and BS EN 50363-3. TYPE TI 1 (70 oC) is also available. All these wires are Fire Retardant to IEC 60332-1
Applications:
  •    Installation in surface mounted or embedded conduits, or similar closed systems.
  •   Suitable for use in channels with cover. Suitable for fixed protected installation in or on light fittings and inside appliances, switchgear.
Packing:
  •   Special Packing on durable Plastic reels of 100 yards or as per Customer requirements.
Colors:
  •   Red, Yellow, Blue, Black, Brown, Green, White, Orange, Grey, Green/Yellow or any other color as per customer requirement.
