Fire Resistance Wires (CU/MICA/LSHF)

Download Catalogue

Product Code : FRW-01

Send Enquiry


Red Sea Cables Company enjoys a track record in wires, cords and power cables manufactured in KSA and successfully we introduce our new LSHF fire resistant power cables and wires and we will sell under the brand name of “Fire guard”.
RESCAB provides fire resistant cables meeting IEC 60331-21; BS 6387 and BS 7846-F2requirements. We provide these cables with LSHF sheath meeting IEC 61034; IEC 60754 and IEC 60332-3 Cat C and A.
FIRE TESTS many tests are carried out during manufacturing or as final inspections. You can find here the main tests concerning the behavior of cables under fire conditions, it is important to verify all required performances and give the customers the full compliance to the requirements.
RESCAB is proud of its new product passed fire tests at UK labs.
Technical Specifications:

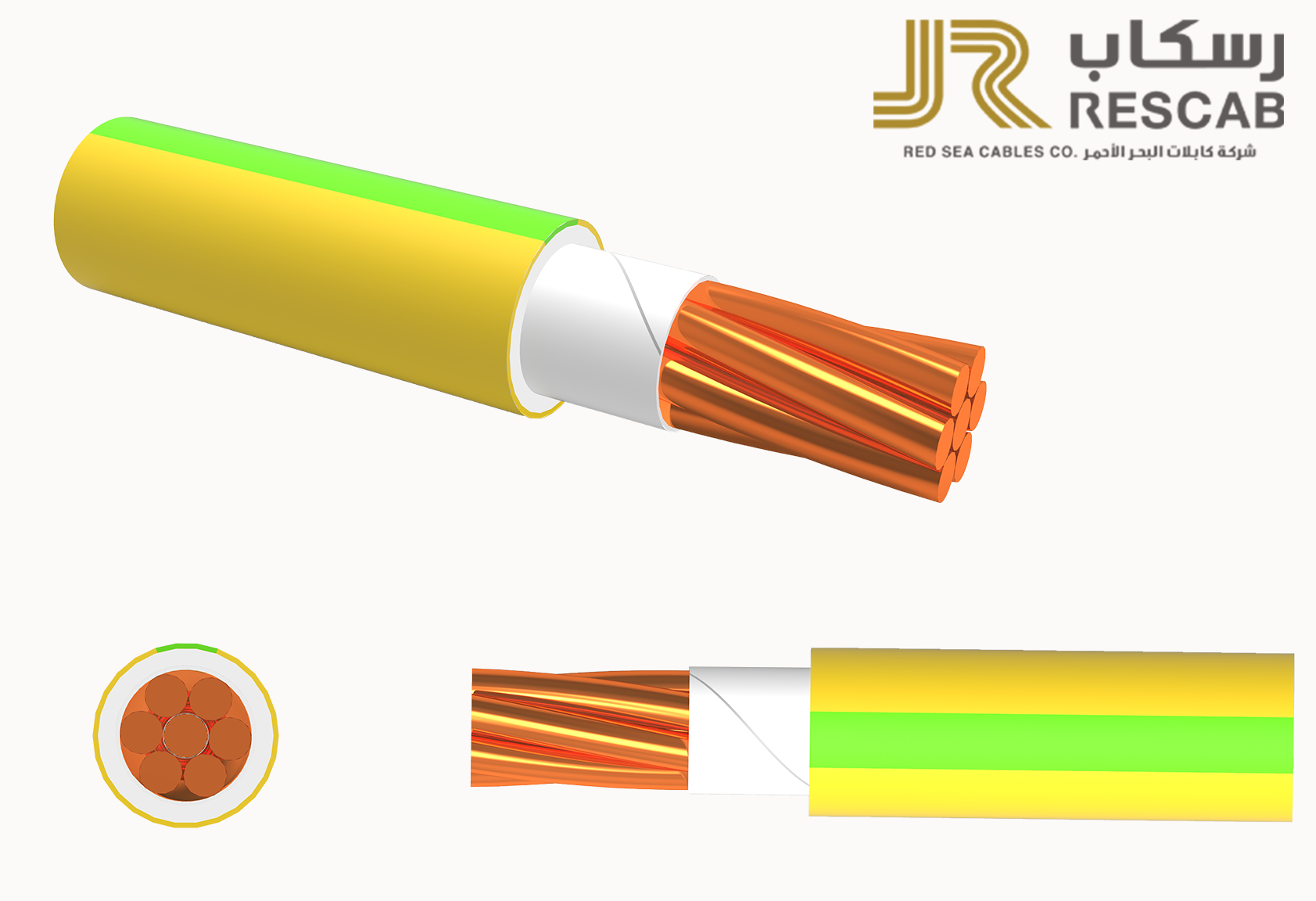

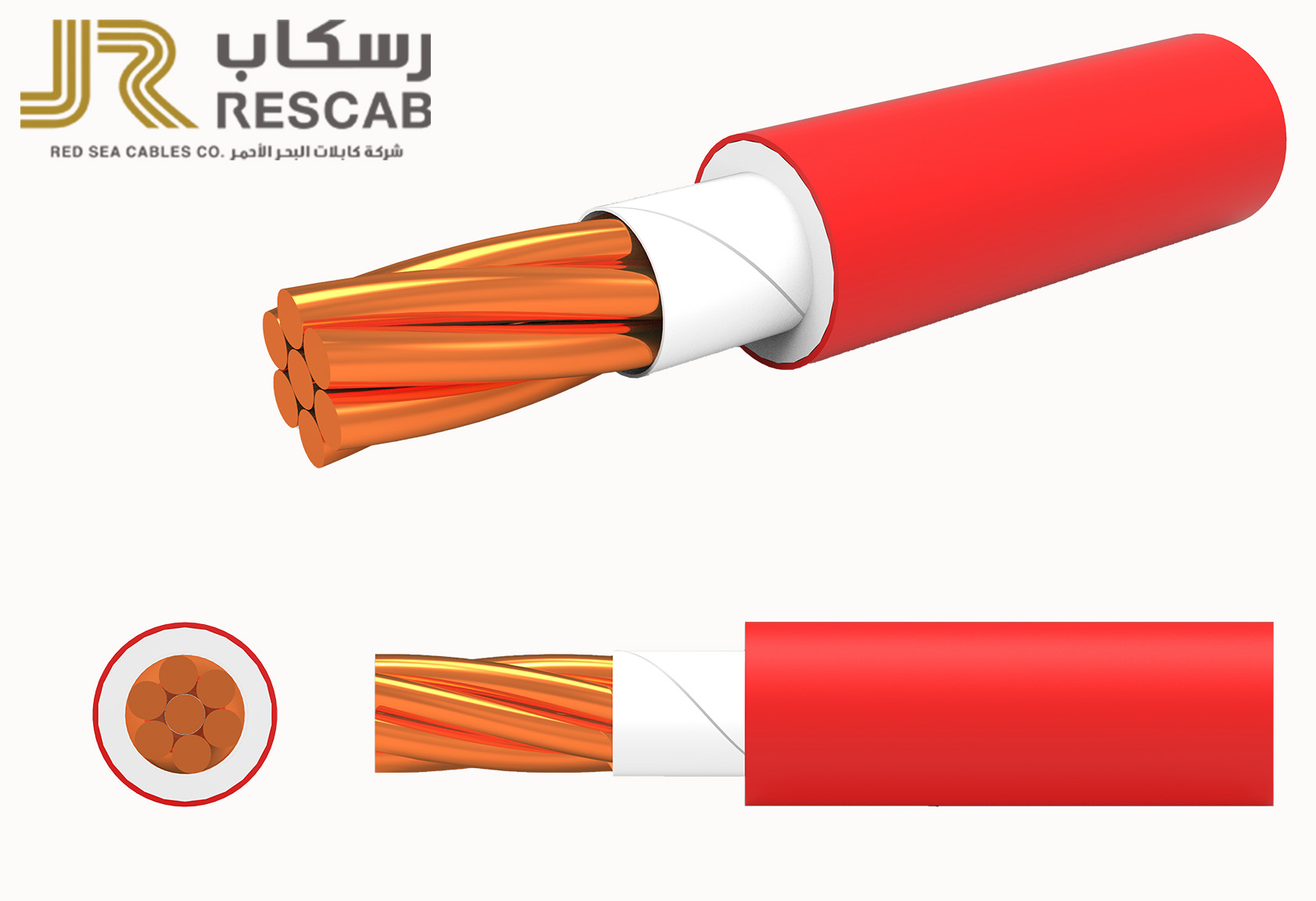

  •     FIRE Resistance CU/MICA/LSHF Single Core - 450/750 Flame Retardant to IEC 60332-1 Vertical Flame Propagation Test.
  •   Soft annealed copper according to BS EN 60228, Class 2 stranded conductor with Conductivity 100 % IACS wrapped with mica tapes.
  •   Polyolefin cross-linked material of Type EI 5 to EN 50363-5
  •   This single core cable is especially designed for applications where integrity of electrical circuit is critical and essential so that power supply can be maintained even under extreme condition such as fire.
                        1. Fire extinguishing systems to operate sprinklers
                        2. Control panels
                        3. Exit signs in high rising buildings
                        4. Hotels, hospitals and other public facilities
  • Red, Yellow, Blue, Black, Brown, Green, White, Orange, Grey, Green/Yellow or any other color as per customer requirement.
