Red Sea Cables Company enjoys a track record in wires with thermoplastic PVC insulation for general purpose applications such as for supplying power and lighting in residential and commercial buildings.
They are intended for use in the indoor fixed installation, distribution in conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus.
Technical Specifications:
Conductor:
Insulation:
-
Thermoplastic Polyvinyl chloride (PVC) Insulation rated up to maximum temperature 105oC (Dry location, THHN) and 75oC (wet application, THWN) having special properties of Heat, Moisture, gasoline and Oil resistant II and Fire Retardant (VW-1) in accordance with UL 83, UL 758 and UL 1063 with State of the Art Extrusion technology for color code by SKIN Coating,
Jacket:
Applications:
-

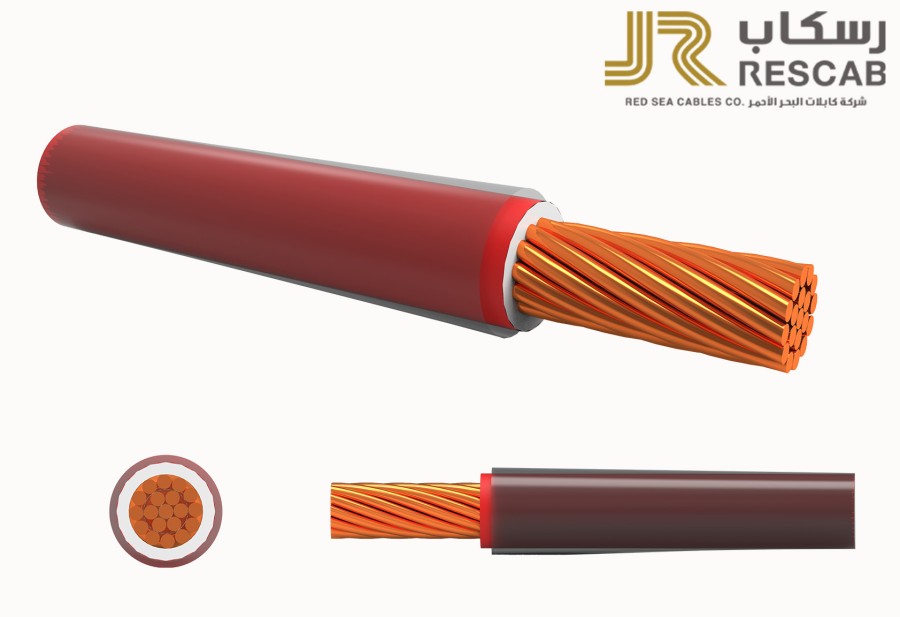

THHN/THWN wires consist of soft annealed CU conductor, thermoplastic insulated and covered with a tough protective Nylon sheath which makes it Heat, Moisture, gasoline and Oil resistant II and Fire Retardant (VW-1). These building wires are mostly intended for general purpose applications as defined by National Electrical Code (NEC) and used in Conduits or similar closed systems, Cable Trays for services, feeders and branch circuits in residential, commercial or industrial applications, Voltage Rating is 600 Volts for all application.
-
THHN- «Thermoplastic High Heat Nylon coated», building wire - UL 83.
-
THWN- «Thermoplastic High Water (Moisture) resistant Nylon coated» building wire - UL 83.
-
MTW - «Machine Tool Wire» (Stranded items only) - UL 758.
-
AWM - «Appliance Wiring Materials» (Stranded items only) -UL 1063.
Packing:
Colors:
-
Red, Yellow, Blue, Black, Brown, Green, White, Orange, Grey, Green/Yellow or any other color as per customer requirement.
