MEDIUM VOLTAGE POWER CABLES

Download Catalogue

Product Code : MV-01

Send Enquiry

Description

Red Sea Cables Company offers an extensive range for medium-voltage power cables range, range is available with a maximum cross-sectional area of 630 mm2 for single-core cables and 500mm2 for three-core cables and nominal system voltage ratings of up to 35 kV. These cables are used to supply electricity to commercial or residential buildings and to industrial distribution circuits. They are suitable for indoor use (eg. power supply stations) and outdoor use (eg. in cable ducts, underground, and on cable trays for industrial buildings, switch-boards, and power stations). They are designed to meet both the national and international standards in quality and safety.

Technical Specifications:
  • Electrical medium voltage power cables complying with IEC 60502-2, BS 6622 and BS 7835. All cables are Flame Retardant to IEC 60332-1 Vertical Flame Propagation Test.
    Conductor:
  • High conductivity soft annealed Copper conductor and Aluminum conductor according to IEC 60228, Class 2 stranded round compacted.
    Insulation:
  • Cross-linked polyethylene (XLPE) or tree-retardant cross-linked polyethylene (TR-XLPE) with Maximum service temperature 90ºC.
   Metallic Screen:
  • Copper wire screen
  • Cross section upon request.
  • Copper tape screen
  Armoring:

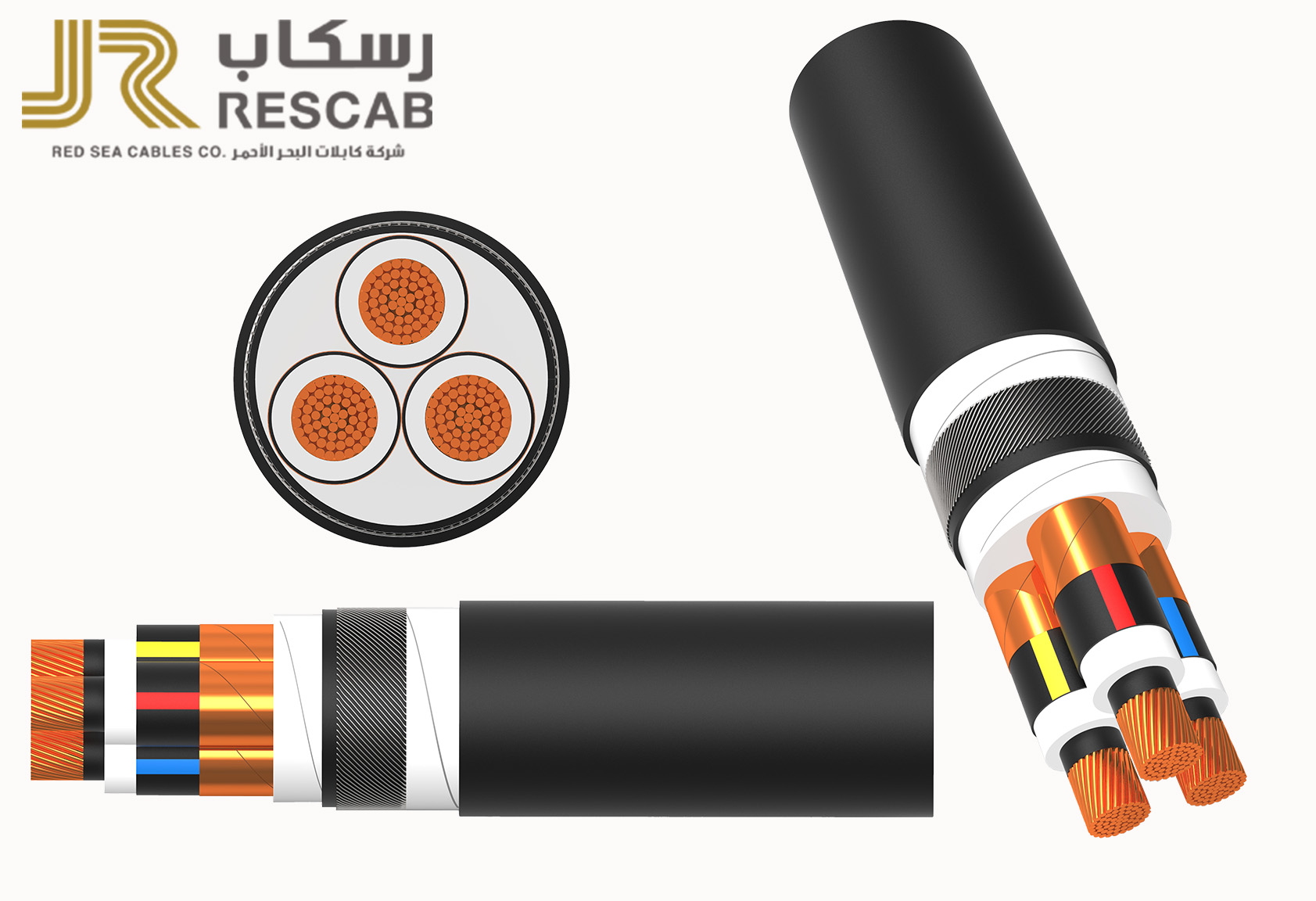

  • Galvanized steel wire “SWA” or galvanized double steel tape “STA" for multi core cable

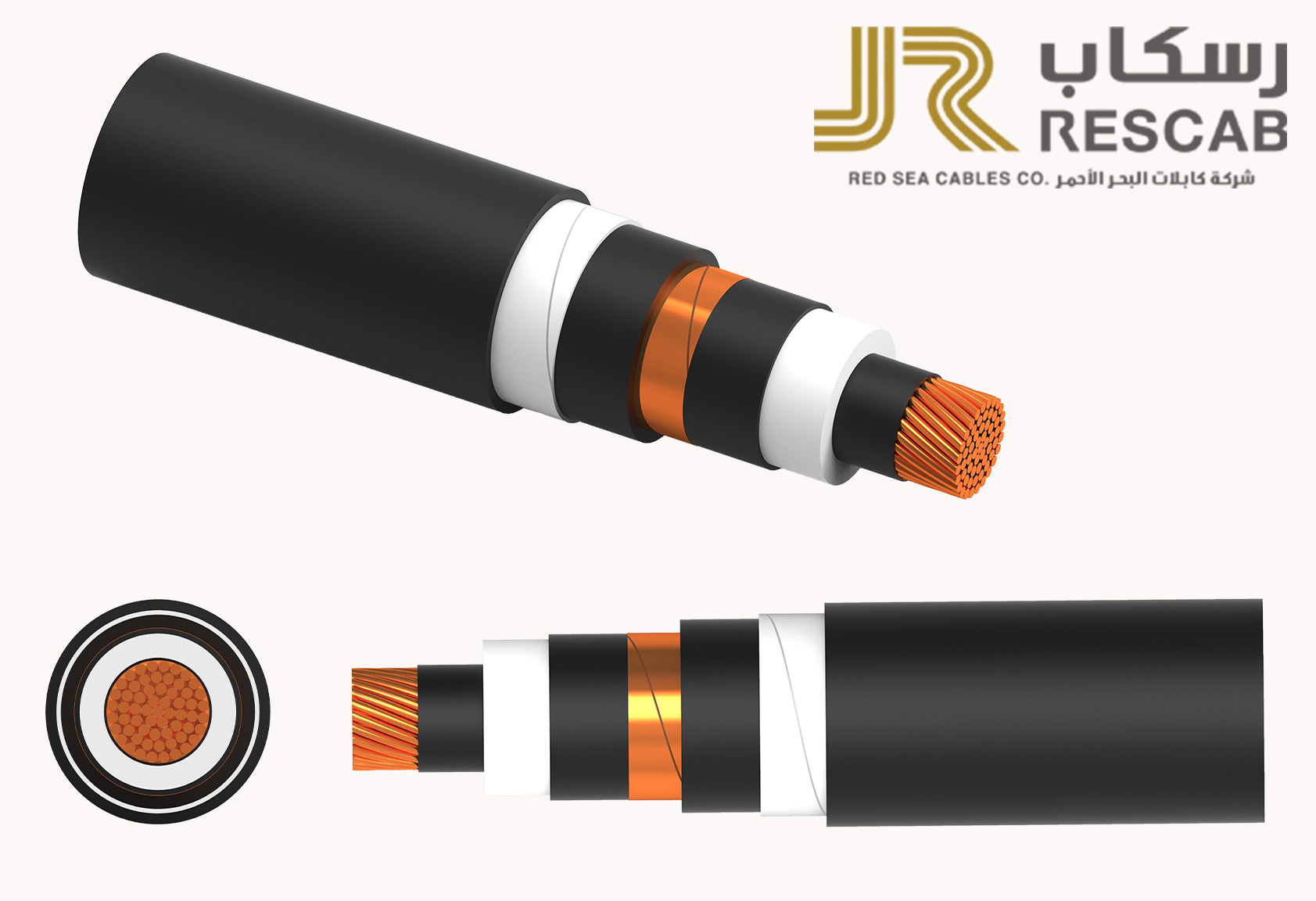

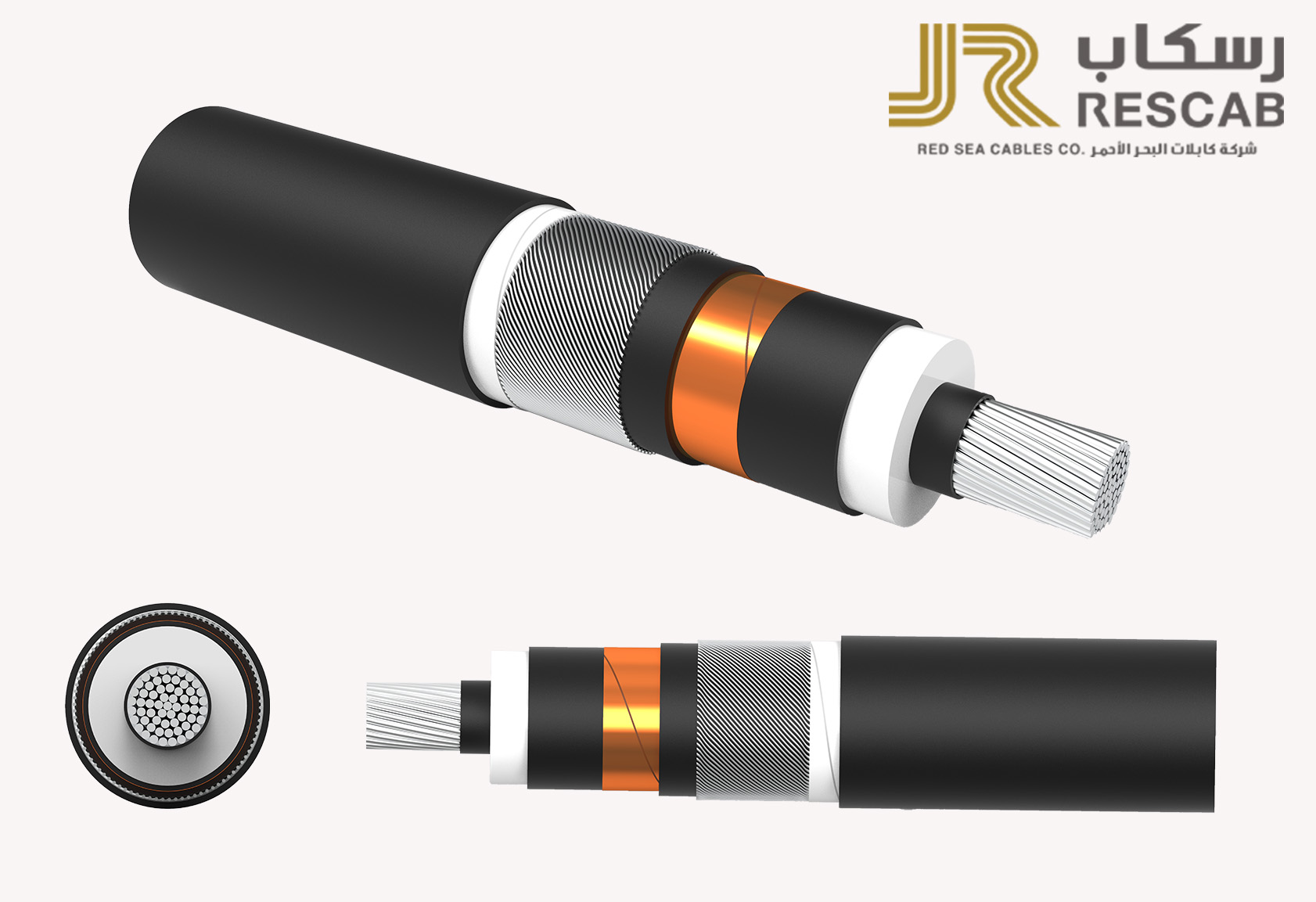

  • Aluminum Wire Armored “AWA” or Aluminum Tape Armored ATA for single core cable
  Outer Sheathing:
  • PVC ST2, LS0H ST8, LDPE, LLDPE, MDPE and HDPE ST7
 Special Requirements:
  • High fire performance, Flame propagation tests: IEC 60332-3-24 Category C - IEC 60332-3-23 Category B - IEC 60332-3-22 Category A
  • Chemical performance: Oil resistance
  • Sunlight & UV Resistant
  • Waterproof for conductor and screen and Fully water tight
  • Anti-termite and anti-rodent resistant
  • Bidding material, PVC, PE, LS0H
  • Special color for outer sheath
  • Special outer sheath material: PVC(FRLS)
  Application:
  • These cables are suitable for direct burial or for installation on trays or in ducts.
