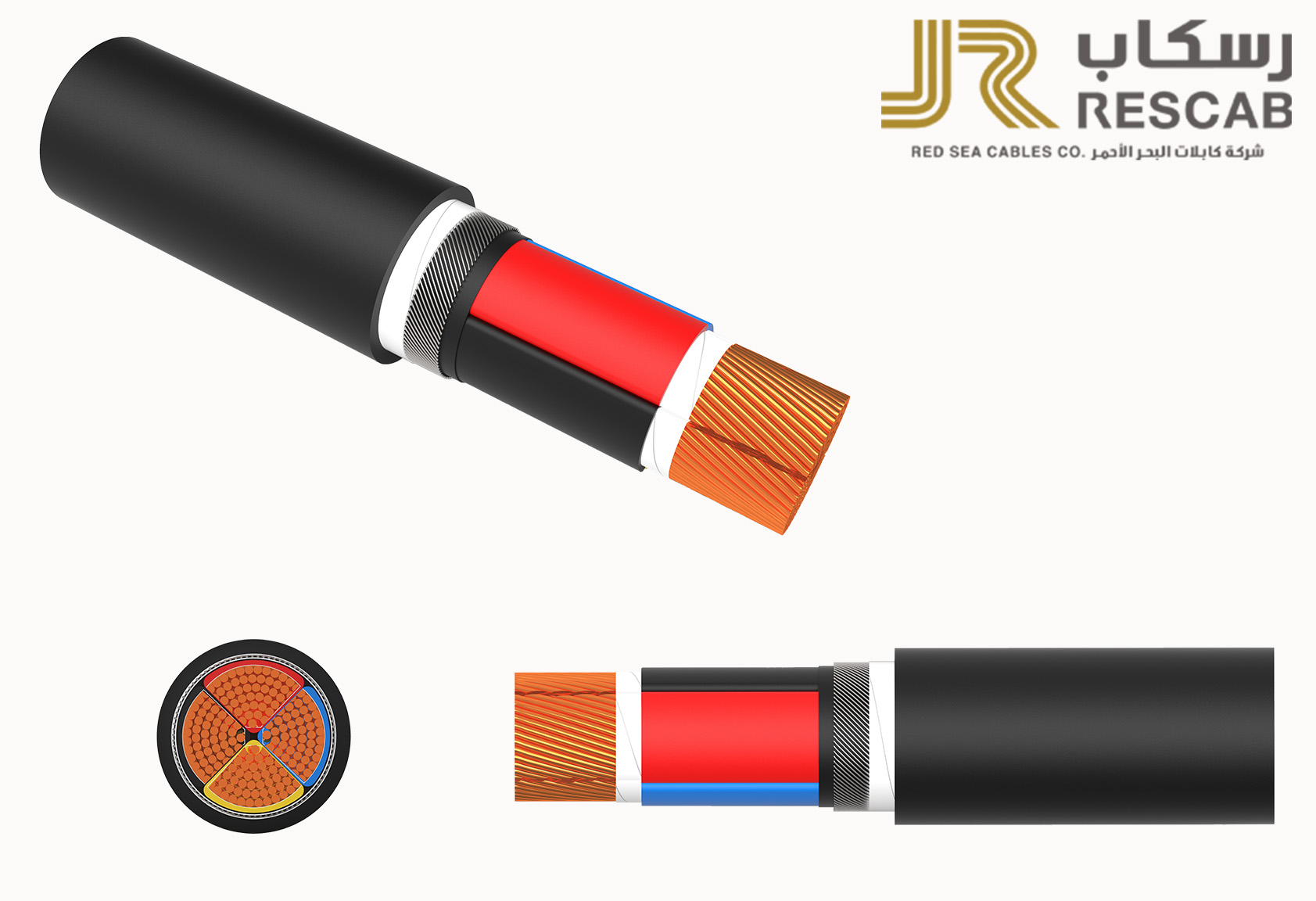

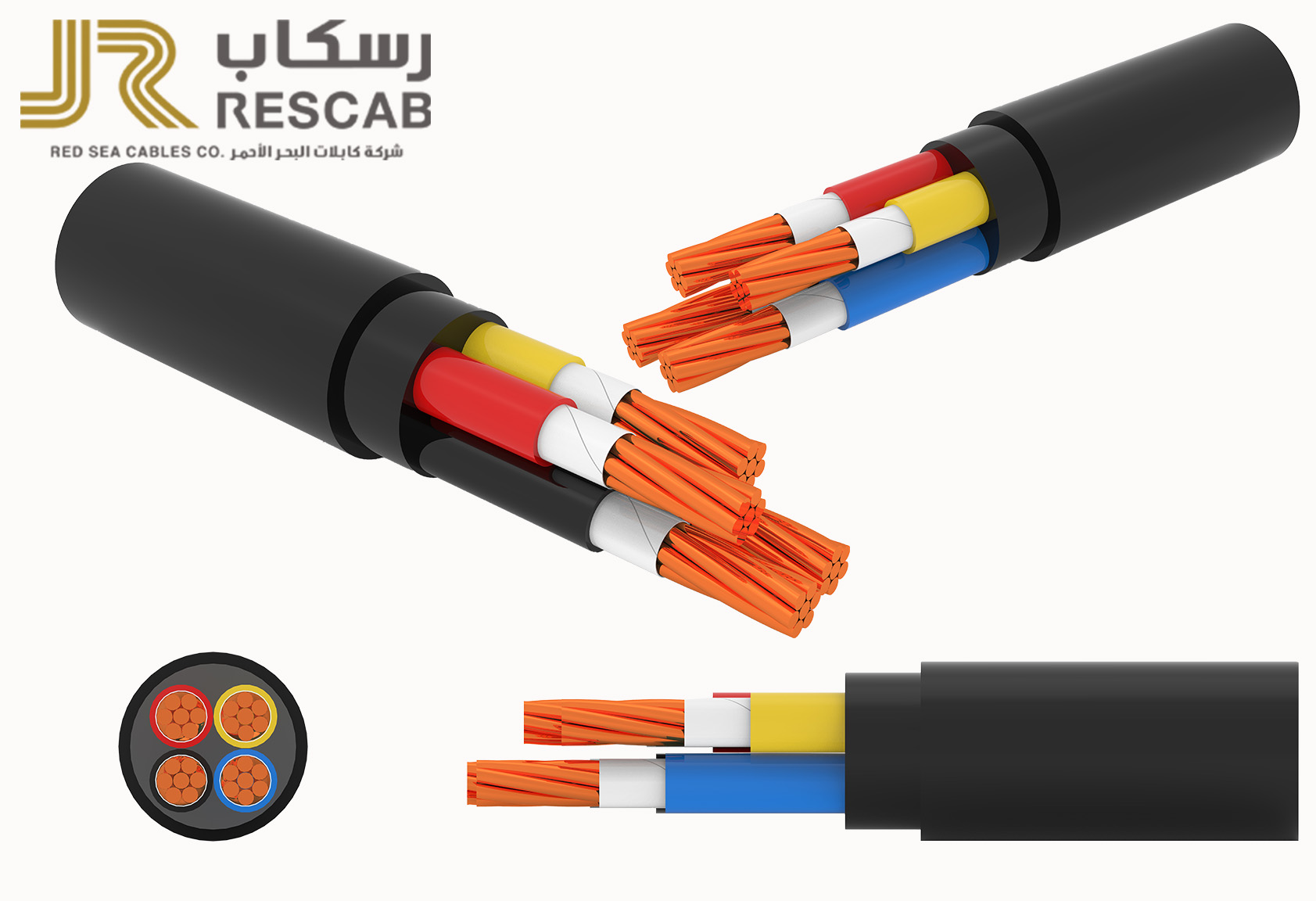

LOW VOLTAGE FIRE RESISTANCE CABLE

Product Code : LVFRC-01

Description

Red Sea Cables Company enjoys a track record in wires, cords and power cables manufactured in KSA and successfully we introduce our new LSHF fire resistant power cables and wires and we will sell under the brand name of “Fire guard”.

RESCAB provides fire resistant cables meeting IEC 60331-21; BS 6387 and BS 7846-F2requirements. We provide these cables with LSHF sheath meeting IEC 61034; IEC 60754 and IEC 60332-3 Cat C and A.

FIRE TESTS many tests are carried out during manufacturing or as final inspections. You can find here the main tests concerning the behavior of cables under fire conditions, it is important to verify all required performances and give the customers the full compliance to the requirements.

RESCAB is proud of its new product passed fire tests at UK labs.

Technical Specifications:

Electrical low voltage cables complying with IEC 60502-1 All cable are Flame Retardant to IEC 60332-3-24 Category C Flame Propagation Test, Sunlight & UV Resistant. Fire resistant test as per BS 6387 (CWZ) 950 °C for 3 hours.

Conductor:

High conductivity soft annealed copper according to BS EN 60228, Class 2 stranded Conductor wrapped with mica tapes. Conductor can be offered with round, round compacted and sectored shape.

Insulation:

Polyvinyl chloride (PVC) & Cross-linked polyethylene (XLPE) with Maximum service temperature 90ºC.

Armoring (upon request):

Aluminum Wire Armored “AWA” for single core cable.
Galvanized steel wire “SWA” for multi core cable

Outer Sheathing:

LSHF type ST8 acc. To IEC 60502

Applications:

This cable is specially designed for areas where integrity of electrical circuit is critical and essential so that power supply can be maintained even under extreme condition such as fire.

1. Emergency lightings, control and power circuits

2. Power stations

3. Fire alarm system

4. Underground tunnels

5. Communication systems

6. Lifts

7. High rise buildings

Core Color:

1 Core: Black (Red on request).
3 ½ Cores: Red, Yellow, Blue and Black
4 Cores: Red, Yellow, Blue and Black.
